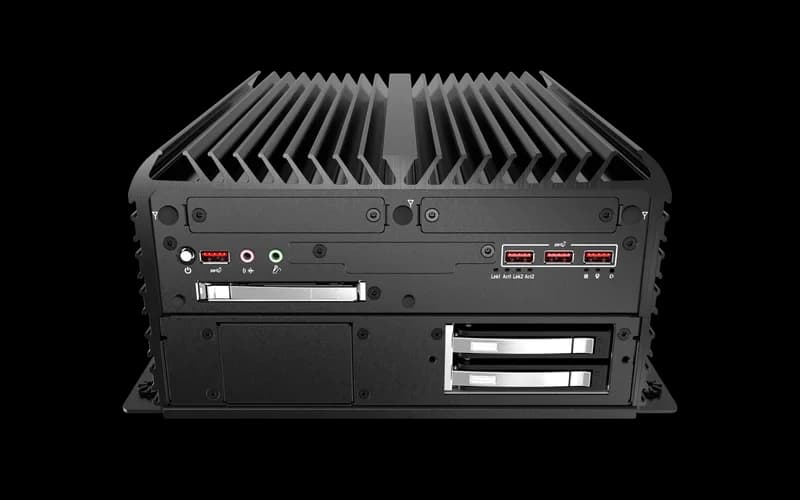

RCO-6000-RPL-2-2B15M AI Edge Industrial Computer with LGA 1700 for Intel® Core™ (Series 2)/14th/13th/12th Gen Processors

Описание

Intel® Core™ Processors (BTL, Series 2) / 14th / 13th / 12th Gen RPL/ADL Series, LGA1700 Intel® R680E Chipset 2x DDR5 4800/5600 MT/s SODIMM. Max. up to 96GB Triple Independent Display: 2x DisplayPort, 1x DVI-I 2x Intel® 2.5 GbE supporting Wake-on-LAN and PXE 1x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket 1x 9mm 2.5" SATA SSD (Internal), 1x 7mm 2.5" SATA SSD (Hot-swap) 2x 15mm Hot-swappable 2.5" SATA/NVMe SSD Bay 1x M.2 (E Key, PCIe x1, USB 2.0, 2230) 1x M.2 (B Key, 2242/3042/3052, PCIe x2, Support AI Module/NVMe Storage, PCIe x1 & USB 3.2 Gen1, Support 4G/5G) 6x RS-232/422/485 (4x internal), 8x USB 3.2 Gen 2, 1x USB 3.2 Gen 1 (internal) 8x DI + 8x DO with isolation 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode Wide Operating Temperature -25°C up to 70°C TPM 2.0 Supported EDGEBoost Options: 1x PCIe x16(Gen 4), 1x PCIe x1(Gen3) or 1x PCIe x16 (8-lane, Gen 4), 1x PCIe x8 (8-lane, Gen 4)
